Product Details:
|
| Product Name: | 3-9x42IR Long Range Hunting Scopes | Objective Lens Diameter: | 42mm |
|---|---|---|---|
| Ocular Lens Diameter: | 36mm | Lens Coating: | FMC |
| Body Tube Diameter: | 30mm Monotube | Construction Material: | A6063-T6 |
| Scope Length: | 260mm | Eye Relief: | 101.2mm |
| Click Value:: | 0.1MIL | Weight (g): | 480g |
| High Light: | 3-9X42IR Long Range Hunting Scopes,3-9X42IR illuminated reticle scope,Crossbow illuminated reticle scope |
||
Dual illuminated Reticle 3-9X42IR Compat Long Range Hunting Scopes For Crossbow
Dual illuminated Reticle 3-9X42IR Compat Long Range Hunting Scopes For Crossbow with Europe Reticle is professional crossbow scope
Features
30 mm monotube
Red and Green illumination
Glass etched figure Reticle
Fully coated
Specification
| Item Name | 3-9x40Long Range Hunting Scopes |
| Item No | SFS012 |
| Magni cation | 3-9 |
| Ocular Size | 42mm(external diameter ) |
| Primary Obj | 42MM |
| Tube Dia | 30MM |
| Total Length | 26CM |
| Weight: | 480G |
| Mounting Length | 10CM |
| Eye Relief | 70-90MM |
| FOV(ft @100yds) | 8-48 |
| Diopter | ± 2 |
| Click Value | 0.1MIL |
| Illumination | R./G |

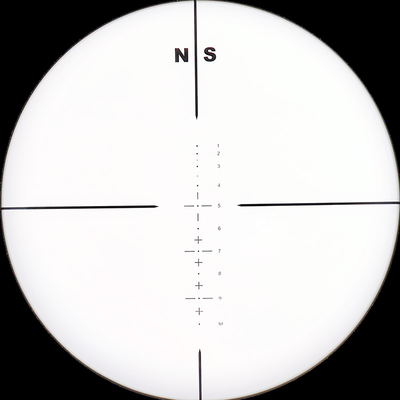

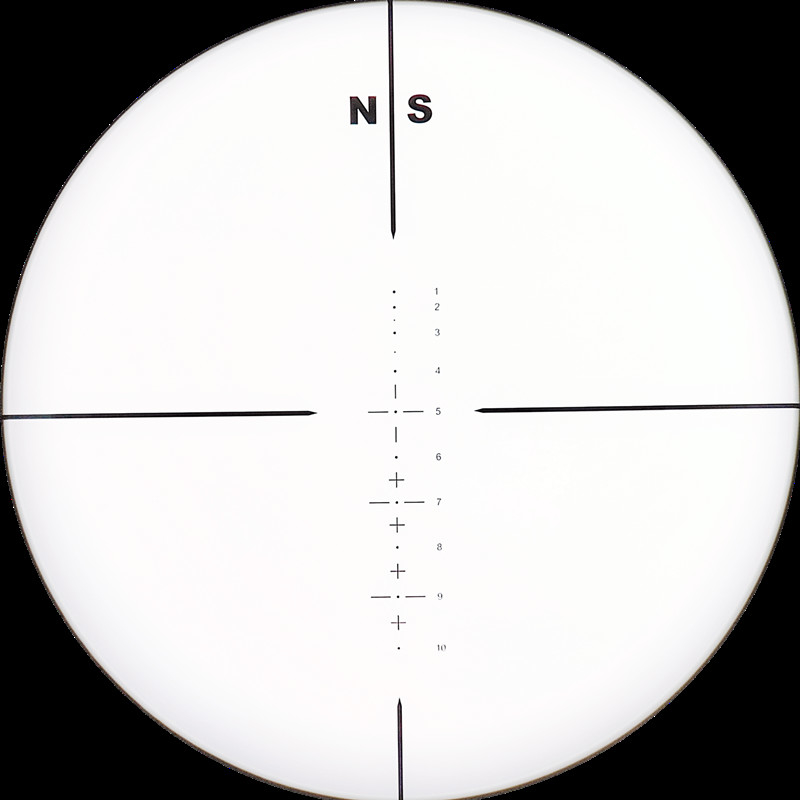

| Reticle: | Cross bow glass reticle |
Specification of other Crossbow scopes
| Requirement | 1.5-5x32 | 2-7x32 | 2.5-10x42 |
| Magnification Low | 1.5 | 2 | 2.5 |
| Magnification High | 5 | 7 | 10 |
| Objective diameter | 32 | 32 | 32 |
| Maintube diameter | 30 | 30 | 30 |
| Eyepiece Field of view | 21.5 | 21.5 | 21.5 |
| Diopter range +/- | 2 | 2 | 2 |
| Exit Pupil Distance (mm) | 80 | 80 | 80 |
| Standard Klick value for E/W (MOA) | 0.5 | 0.5 | 0.5 |
| Total travel elevation (@ 30 yds) | ≥ 90MOA | ≥ 90MOA | ≥ 80MOA |
| Total travel windage (@ 30 yds) | ≥ 90MOA | ≥ 90MOA | ≥ 80MOA |
| Parallax Compensation | 30yds | 30yds | 100yds |
| Sealing gas used | Nitrogen | Nitrogen | Nitrogen |
| Clear aperture min magnification (mm) | 27.5 | 27.52 | 37.84 |
| Clear aperture max magnification (mm) | 24 | 32 | 44 |
| Eff. exit pupil diameter @ min. magnification ± 3 % | 22.9 | 17.2 | 15.136 |
| Eff. exit pupil diameter @ max. magnification ± 3 % | 4.8 | 5.7 | 5.5 |
| Maximum resolution in Arc. Second (min. Magnification) | 5 | 5 | 5 |
| Maximum resolution in Arc. Second (max. Magnification) | 5 | 5 | 5 |
| Weight (g) | 368g | 395g | 480g |
| Length(mm) | 185mm | 245mm | 260mm |
Pack List
1X brand new 3-9x40Long Range Hunting Scopes
1x Plastic Wrench
1XCleaning cloth
1xCR2032 Battery
1X Operating manual

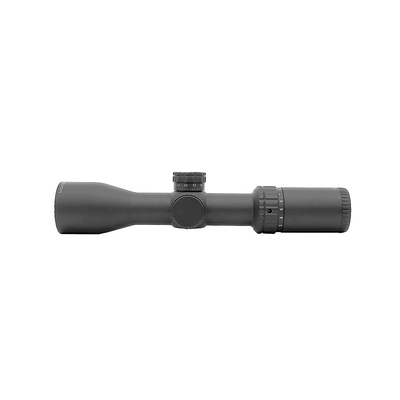

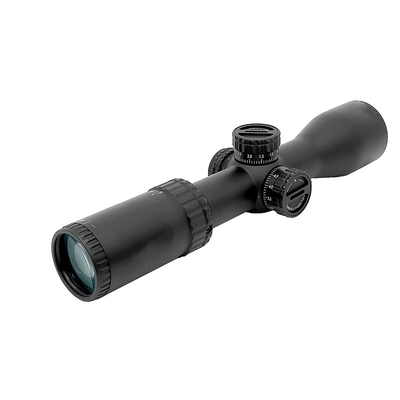

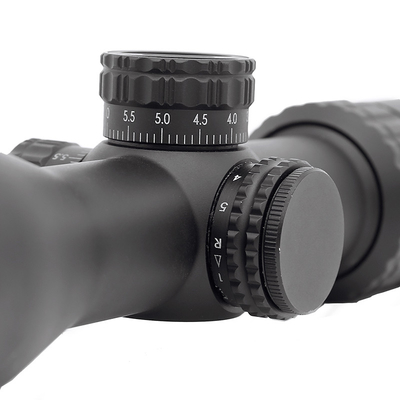

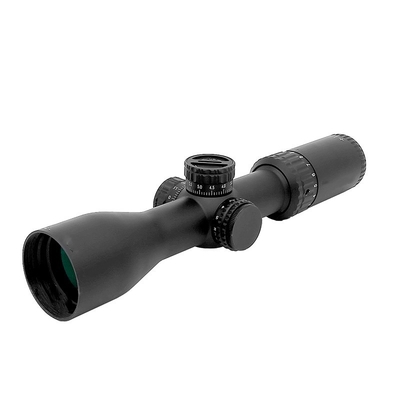

Product PIcture
