Product Details:
|
| Product Name: | 4-20X50 Long Range Hunting Scopes | Objective Lens Diameter: | 50mm |
|---|---|---|---|
| Construction Material: | A6063-T6 | Exit Pupil Distance (mm): | : 101.2 |
| Body Tube Diameter: | 30mm | Diopter Range: | +/-: 2 |
| Field Of View (FOV):: | 4.9-24.4ft | Parallax Compensatio: | 25 Yds. - ∞ |
| Sealing Gas Used: | Nitrogen | Weight: | 680g |
| High Light: | 4-20x50 SFIR Long Range Hunting Scopes,4-20x50 SFIR lighted crossbow scopes,30mm lighted crossbow scopes |
||
Side Focus 4-20x50SFIR Illuminated Second Focal ReticleLong Range Hunting Scopes
Side Focus4-20x50SFIR Illuminated Second Focal ReticleLong Range Hunting Scopes is designed for rifles and shortguns
Features
Side focus and Illuminated Second Focal glass reticle
· Waterproof, fog-proof
· Multi-coated lenses
·30mm mono-tube design
· 5X zoom power
Specification
| Model Name | 4-20x50 Long Range Hunting Scopes |
| Model No | SFS007 |
| Magnification Low | 4 |
| Magnification High | 20 |
| Objective diameter | 50 |
| Maintube diameter | 30 |
| Eyepiece Field of view | 18 |
| Diopter range +/- | 2 |
| Exit Pupil Distance (mm) | 101.2 |
| Standard Klick value for E/W (MOA) | 0.25 |
| Total travel elevation (@ 100 yds) | ≥ 50MOA |
| Total travel windage (@ 100 yds) | ≥ 50MOA |
| Parallax Compensation | 25 yds. - ∞ |
| Parallax compensation type | Side focus |
| Fast focus eyepiece | yes |
| Sealing gas used | Nitrogen |
| Clear aperture min magnification (mm) | 45.0 |
| Clear aperture max magnification (mm) | 50 |
| Eff. exit pupil diameter @ min. magnification ± 3 % | 11.25 |
| Eff. exit pupil diameter @ max. magnification ± 3 % | 2.50 |
| Maximum resolution in Arc. Second (min. Magnification) | 4 |
| Maximum resolution in Arc. Second (max. Magnification) | 4 |
| Range of Function temperature (Unit can still be operated) | -25°C/+55°C |
| Storage temperature | -40C to +85C |
| Range of Dioptric compensation +/- dpt | 2 |
| Permissible backlash Dioptric Compensation | <0.25dpt |
| objective field of view @ 100m min magnification (ft @100yds) | 24.4 |
| objective field of view @ 100m max magnification (ft@100yds) | 4.9 |
| Change of impact point after change of magnification (MOA) | 1 |
| Light transmission(daylight adapted eye) | |
| Parallax of Reticle (minute) | >90% |
| Centering Reticle, full Field of View | ± 7 % |
| Straightening of the Reticle | ± 2 ° |
Pack List
1X brand new4-20X50SFIR Long Range Hunting Scopes
1XCR2032 Battery
1x Plastic Wrench
1XCleaning cloth
1X Operating manual

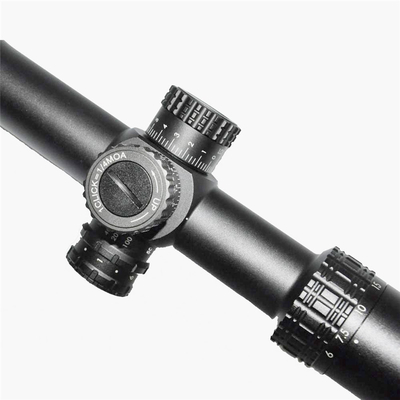

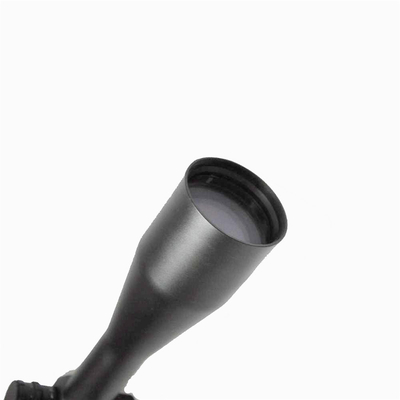

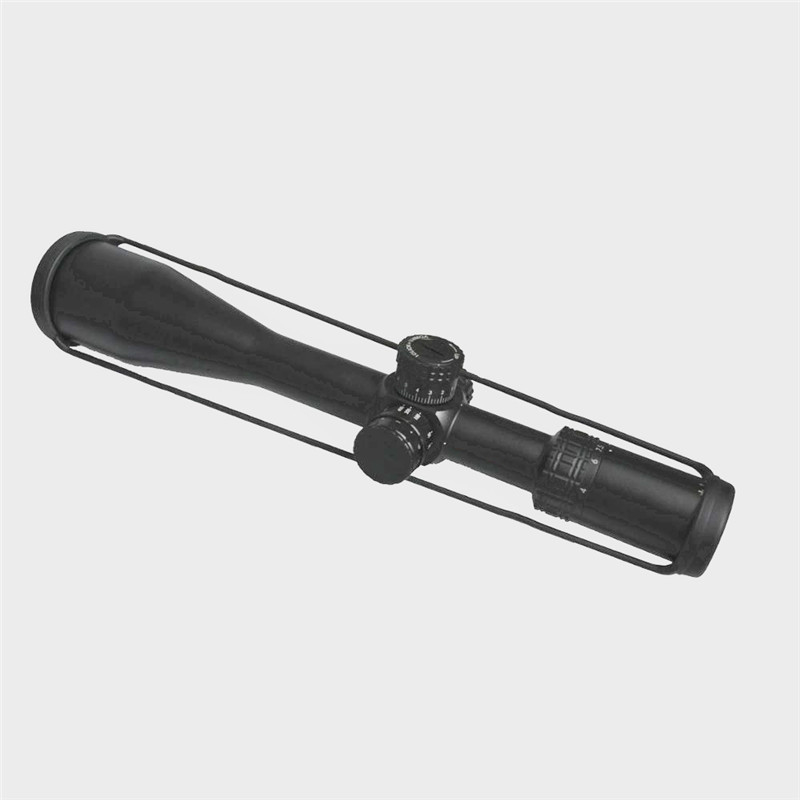

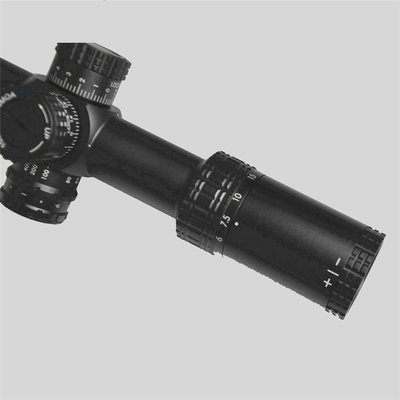

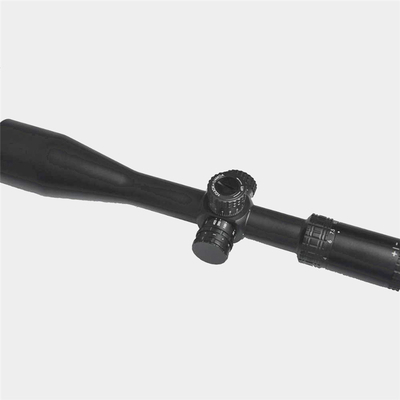

Product PIcture
