4 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount

I'm Online Chat Now

4 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount

4 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount
4 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount 4 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount 4 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount 4 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount

Large Image :  4 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount

Product Details:
Place of Origin: Chengdu
Brand Name: C-H
Certification: CE ROHS
Model Number: RD038
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 1pc/box,25boxes/ctn G.W:14KGS N.W:12.5KGS Carton size:44*19*40cm
Delivery Time: Delivery details:5~15days after deposit(depend on the quantity)
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 5000PCS/Month

4 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount

Description
Product Name: Red And Green Dot Magnification: 1x
Dot Color: Red & Green Weight: 9.7oz/275g
Color: Black Objective Aperture: 1.2in/30mm
Adjust Way: Coin Adjustment Length: 5in/127mm
Reticle Pattern: 1 Shock/fogproof: Yes
High Light:

4 MOA red dot with Cantilever AR-15 Mount

,

4 MOA red dot 5in 127mm

,

4 MOA Red Dot Reflex Sight

RD038 4 MOA Red and Green Dot with Cantilever AR-15 Mount For20mm Hunting Rifles





RD038 4 MOA Red and Green Dot with Cantilever AR-15 Mount For20mm Hunting Rifles  can be used in quick shooting and aim.fit for quick combat



Features



1Fully Multi-Coated: Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission.

2 Red/Green Dot: Allows shooters a choice of dot color.

3 Single-Piece Chassis: Compact and lightweight.

4 Waterproof: O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

5 Fogproof: Nitrogen gas purging delivers fogproof, waterproof performance.

6 Shockproof: Rugged construction withstands recoil and impact.

7 Hard Anodized Finish: Highly durable low-glare matte finish.

8 Operating Temperature: Rated from -22 degrees to +140 degrees Fahrenheit.

9 Cantilever Ring Mount: Puts the optic bore center 40 mm above the base, providing lower 1/3 co-witness with iron sights on flat top AR-15 rifles.

10 Unlimited Eye Relief: Non-critical eye relief for rapid target acquisition.

11 Adjustable Dot Intensity: Provides ten variable illumination settings-the lowest two settings are night-vision compatible.

12 Battery Life: 12-hour auto-shutdown feature maximizes battery life. Typical battery life is 300 hours at maximum brightness and 6,000 hours at minimum brightness setting.



-With Quick Release Scope Mount

-Stylish Military & Rugged scope with 5 Levels Dot Brightness Control on each illuminate color
-Brilliant Red and green Dot Design
-Increase aiming confidence & Reducing miss-fire
-Short Footprint with protective rubber flap covers allow this unit to brave the harshest situations
-Full Metal Casting Scope Housing Objective
-Mount on any 20mm weaver standard railL
-Easy Hook Up, Install in just seconds
-Low cost and high quality scope is top notch



Specification



Product Name: Red and Green Dot
Dimensions Length: 5.12" / 130mm
Width: 2.56" / 65mm
Height: 2.75" / 70mm
Weight 9.8 oz (278g)
Obj. Aperture 30 mm
Magnification 1x
Field of View 50 degrees
Eye Relief Unlimited
Reticle Type 5 MOA
Finish Black Matte
Battery 1 x CR2032



Packing List



· 1x Tactical 1x32 Red Green Dot Sight laser Telescopic Illuminated M3 Rifle Scope

· 1x CR2032 battery

· 1x hex wrench

· 1x cleaning cloth

· 1x instruction

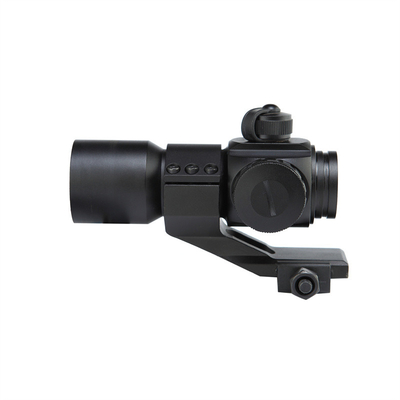

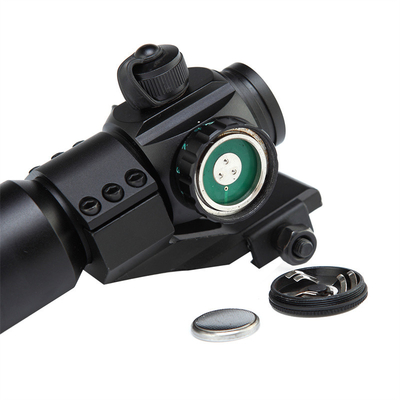

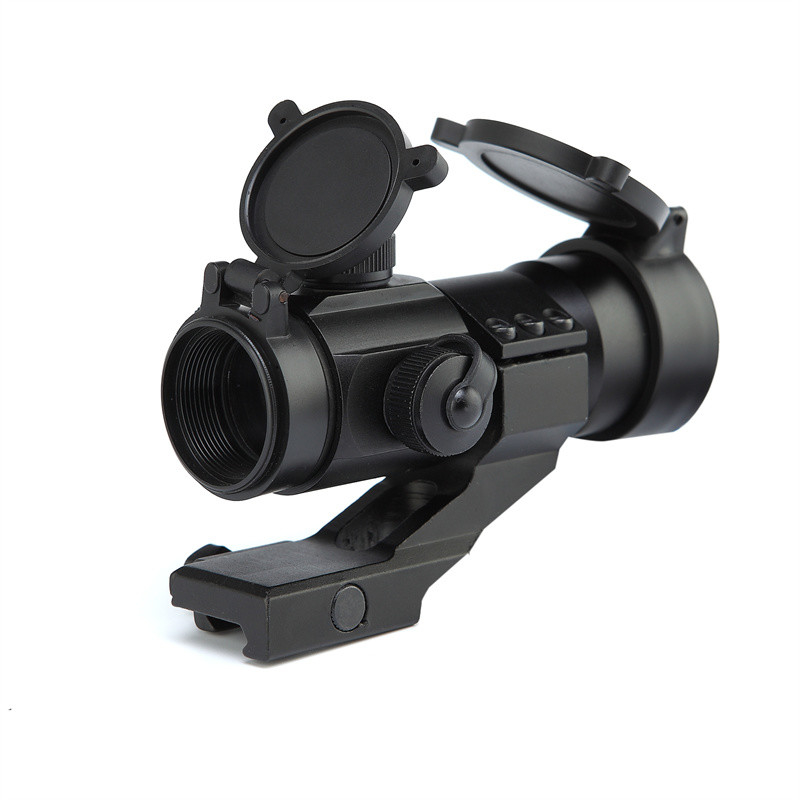

Product Pictures





4 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount 04 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount 14 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount 24 MOA Red Dot Reflex Sight 5in 127mm With Cantilever AR-15 Mount 3
