Product Details:
|
| Product Name: | 1-6x24 Long Range Hunting Scope | Objective Lens Diameter: | 24mm |
|---|---|---|---|
| Scope Length:: | 260mm | Lens Coating: | FMC |
| Body Tube Diameter: | 30mm | Exit Pupil: | 16mm-4mm |
| Field Of View (FOV):: | 18.2-109.2FT | Click Value: | 0.2MIL |
| Length: | 260mm | Weight: | 320g |
| High Light: | 1-6X24 long range shooting scopes,long range shooting scopes 260mm,ARS Hunting Rifle Scope |
||

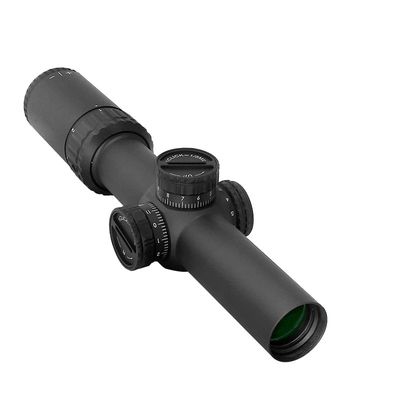

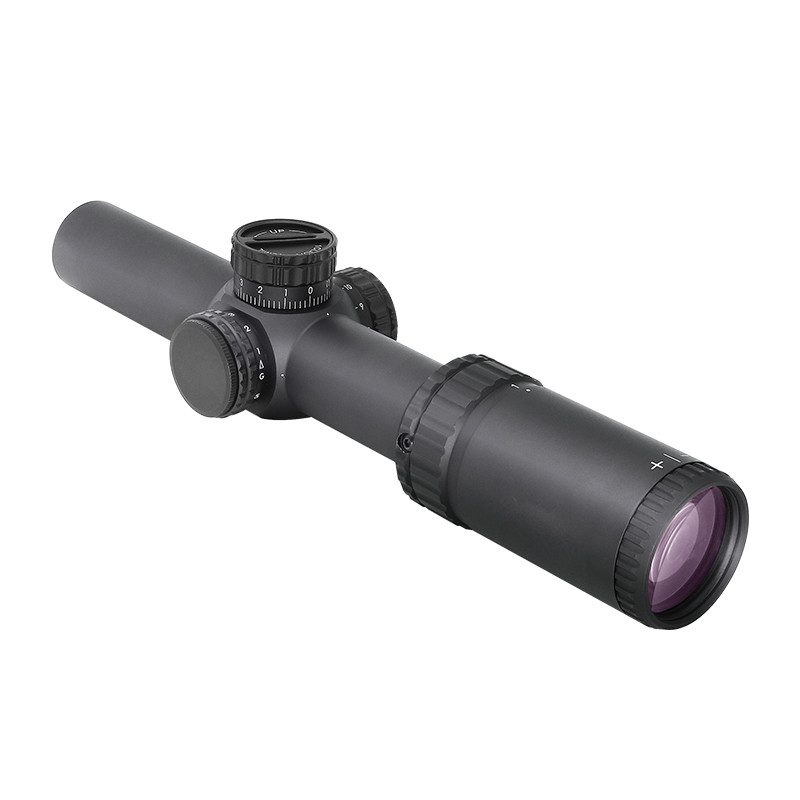

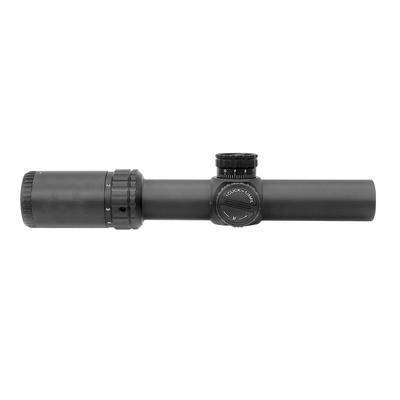

1-6X24 Second Focal compact LongRange Hunting Scopes For ARS or Hunting Rifles
1-6X24 Second Focal compact LongRange Hunting Scopes For ARS or Hunting Rifles is speed scope and
can be used in quick combat
Features
30mm monotube
Red and Green Illumination
Multi-coated lenses
Real 1x maginification
Quick aiming
Compact body and light weight
Specification
| Product Name | 1-6x24IR |
| Product NO | SFS003 |
| Magnification low power | 1 |
| Magnification high | 6 |
| Clear aperture (mm) | 24 |
| Diopter range +/- | 2 |
| Eye relief | 101.2 |
| Standard Klick value for E/W (MIL) | 0.2 MIL |
| Total travel elevation (@ 100 yds) | ≥ 50IL |
| Total travel windage (@ 100 yds) | ≥ 50MIL |
| Parallax Compensation | 100yds |
| Fast focus eyepiece | yes |
| Sealing gas used | Nitrogen |
| Clear aperture min magnification (mm) | 16.0 |
| Clear aperture max magnification (mm) | 24 |
| Eff. exit pupil diameter @ min. magnification ± 3 % | 16.00 |
| Eff. exit pupil diameter @ max. magnification ± 3 % | 4.00 |
| Maximum resolution in Arc. Second (min. Magnification) | 11 |
| Maximum resolution in Arc. Second (max. Magnification) | 7 |
| Range of Function temperature (Unit can still be operated) | -25°C/+55°C |
| Storage temperature | -40C to +85C |
| Range of Dioptric compensation +/- dpt | 2 |
| Permissible backlash Dioptric Compensation | <0.25dpt |
| objective field of view @ min magnification (ft @100yds) | 109.2 |
| objective field of view @ max magnification (ft@100yds) | 18.2 |
| Change of impact point after change of magnification (MOA) | 1.5 |
| Straightening of the Reticle | ± 2 ° |
| Coating | FMC |
Pack List
1X brand new 1-6x24 Long Range Hunting Scope
1X CR2032
1x Plastic Wrench
1XCleaning cloth
1X Operating manual
Product PIcture
