ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm

I'm Online Chat Now

ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm

ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm
ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm

Large Image :  ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm

Product Details:
Place of Origin: CHINA
Brand Name: C-H
Certification: CE ROHS ISO9001
Model Number: NVM008
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Packaging Details: 1pcs/color box
Delivery Time: 2-15days
Supply Ability: 1000PCS/month

ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm

Description
Product Name: Digital Night Vision Hunting Scope Optical Magnification: 1x
Electronic Magnification: 5x Size: 102×76×49mm
Material: ABS+PC Weight: 170g
Battery: Rechargeable Lithium Battery 14500 850mAh/ Voltage: 3.5V - 4.2V
High Light:

ABS PC Night Vision Hunting Monocular

,

ABS PC helmet mounted night vision goggles

,

MINI Hunting Monocular 102×76×49mm

MINI Digital Helmet Night Vision Hunting Scope Monocular For Night Observation





MINI Digital Helmet Night Vision Hunting Scope Monocular For Night Observation Can be connected With helmet or hand held



Specification



  Product Name Digital Helmet Night Vision Hunting Scope
Product NO NVM008
  Product Model P4-0118

Certification



FCC Yes
CE Yes
RoHS Yes
Optics Optical Magnification 1X
Electronic Magnification 5X
Objective Lens φ18mm
Eyepiece Type NBR,unfolded,Diopter
Field of View(°) 16.8º×20.2º
Diopter ±5º
Focusing System Objective Focusing
Nearest Focusing 0.3m
Exit pupil distance 10-15mm
Coating FMC

Low Illumination



Camera Type CMOS
Camera Pixel 40Kb
Photosensitive dimension 1/3"
infrared 850µm
Low light observing distance 2.0m-~∞

No-Light observing distance

(with infrared )

2.0m~200m
Spectrum 450-1100µm
Dynamic 58dB
Lowest Illumination 0.01Lux
Infrared Power 1W
Infrared light adjust 9 degree adjustable

Screen



PHOTO resolution 750×560
Screen size/type 0.2"/LCOS
White Balance Automatic
Colour Day/Night Automatic
Switch Day/Night Automatic

Working Condition



Temperature -20℃ - 45℃
Humidity Max. 70%
Voltage 3.5V - 4.2V
Battery Rechargeable Lithium battery 14500 850mAh/
Power 5V2A/110-220v Adapter

Battery continue working hour

Without infrared/with infrared

1.5-2.5h/1h

Function





SD Card 4-32G
Video Output Yes
Waterproof IPX4
USB mini USB
Tripod mounting Size 1/4"
Camera interface No
shockproof No
Photo Function Yes
Video Function Yes
Screen Bright Adjust Yes
Light Bright Adjust Yes
Photo/Video Delete/Playback Yes
Time Setting Yes

Outlook



Material ABS+PC
Colour Black
Dimension 102×76×49mm
Weight 170g

Accessory



Colour carton dimension(mm) 140×90×96
Carton Weight 62.9g
Soft bag Cap black bag,with magic sticker
Accessory Plastic bag, power adapter,battery,hand belt,USB cable,AV cable,wipe cloth,instruction
Test Test standard Enterprise test standard

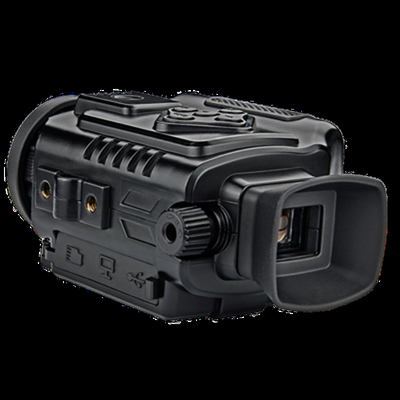

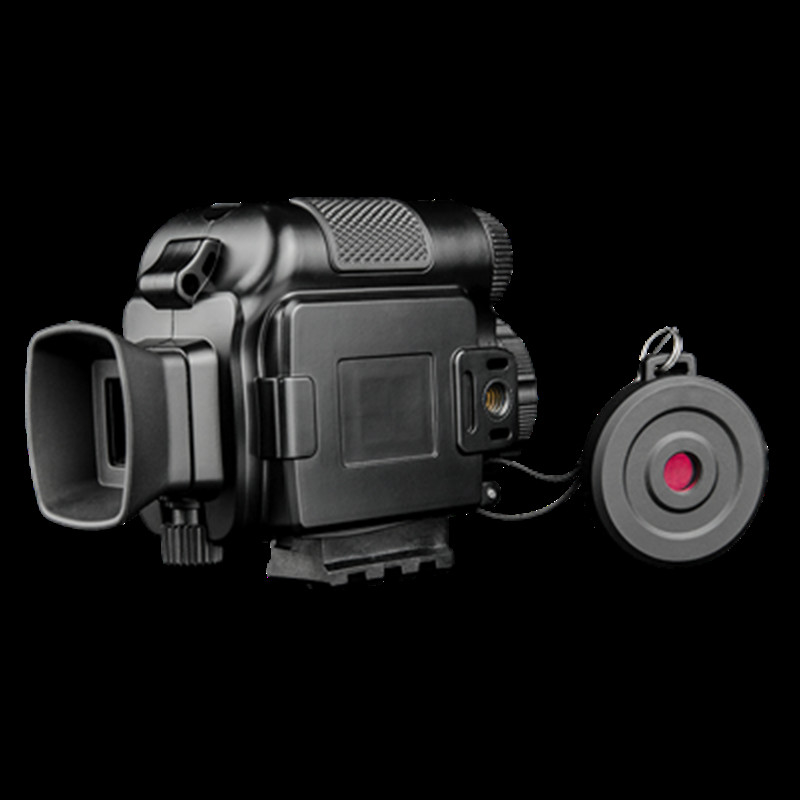

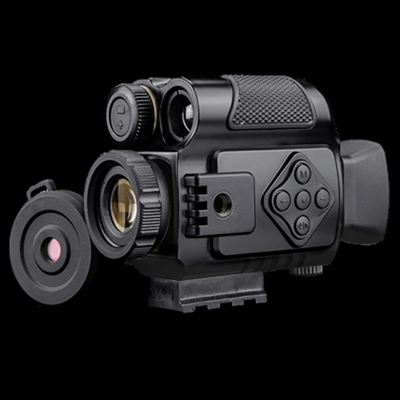

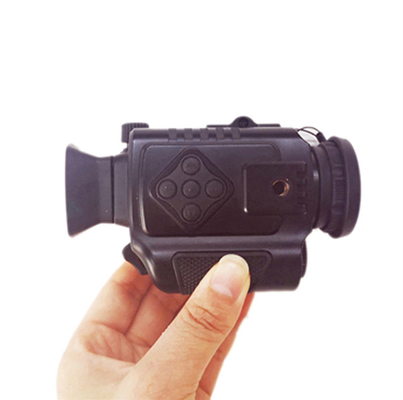

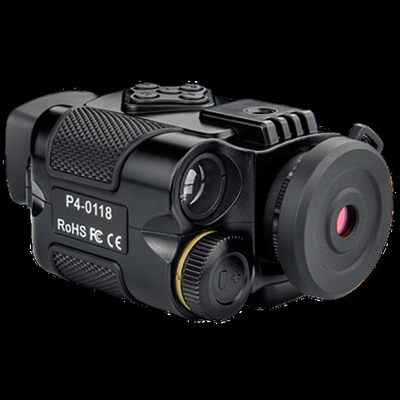

Product Pictures





ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm 0ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm 1ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm 2ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm 3ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm 4ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm 5ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm 6ABS PC MINI ABS PC Helmet Mounted Night Vision Goggles 102×76×49mm 7
