|Product Name:||Tactical 1x22 Military Standard Red Dot Reflex Sight||Lens Diameter:||22mm|
|Weight:||254g||Field Of View(@100yds)::||50°|
|Colour:||Red & Green||Magnification:||1x|
|Tube Diameter:||1.2in/30mm||Rail Size:||22mm|
RD025 Red Dot Reflex Sight,
tacticon red dot 1x22,
tacticon red dot with 20mm Rail

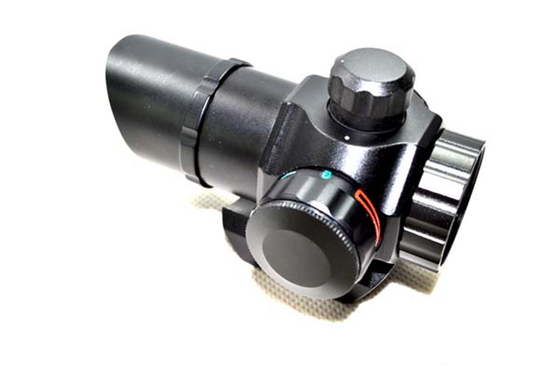

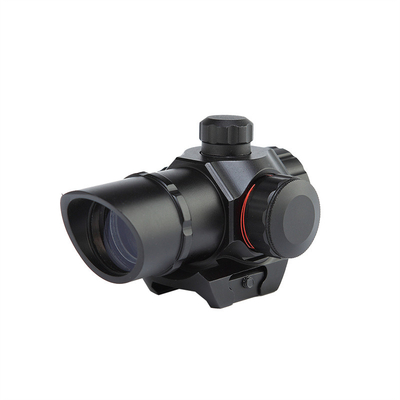

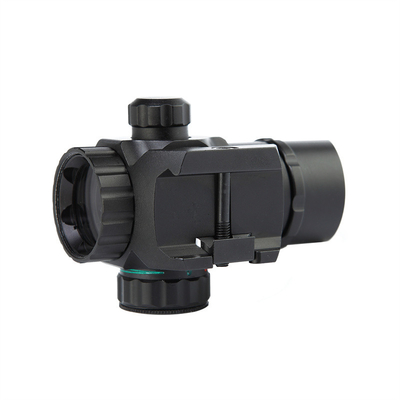

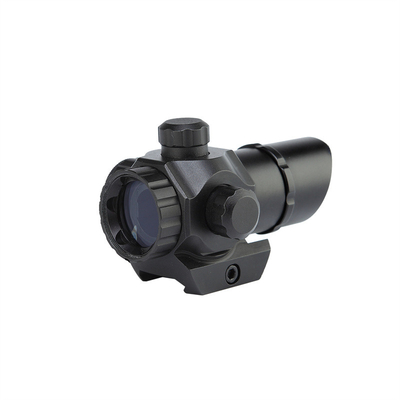

RD025 Tactical 1x22 military standard Red Dot Reflex Sight For 20mmRail Weapons
RD025 Tactical 1x22 military standard Red Dot Reflex Sight For 20mmRail Weapons can be used in quick combat supply quick aiming and shooting
RD025 Tactical 1x22 military standard Red Dot Reflex Sight For 20mmRail Weapons is light weight ,waterproof,shock proof ,Mini size
* Magnification: 1.0x
1 Tubeless Sight Window Lens Size: 22mm
2 Overall length: 76mm (3.0 inch)
3 Mount base length: 32mm (1.2 inch)
4 Width: 58mm (2.3 inch)
5 Height: 50mm (2.0 inch)
6 Stepless green and red illumination adjustment
7 Weight (net): 140g (4.9 ounce)
8 Eye Relief: Free, excellent for moving target and raid shot
9 Parallax: 1 MOA at 80 yards
10 Field of View (@100yds): 50'
11 Optics Coating: Multi Coated
12 Feature 1/2 M. O. A (50 Yards) windage and elevation
13 Elevation Range: ± 45MOA
14 Windage Range: ± 45MOA
15 Shock proof, water resistance and fog proof
16 High quality aluminum alloy in durable black matte finish
17 With reticle lock feature
18 Integrated 21mm picatinny weaver mount

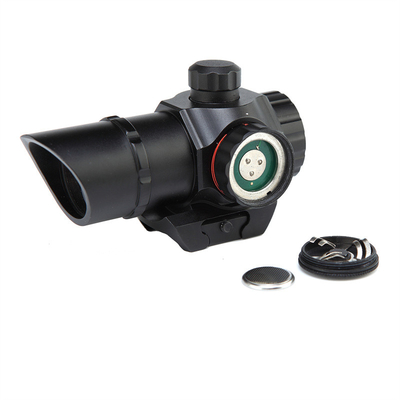

To exchange battery
-Release the cap
-Take out the used battery
-Exchange with 1 new pc of CR2032 button battery
-Refasten the cap again
-1xmini 22mm Red Green Dot Sight
-1x Allen Wrench
-1x CR2032 Battery
1. With 10 years' manufacturing & sales experience, we seek for LONG-TERM cooperation with you!
2. Main Product Lines
1)Red and Green Reflex Sight: Multi-reticle optical lens, parallax corrected, unlimited eye-relief with a wide field of view, light-weight design.
2) Red Dot Scope: Parallax-free design, unlimited eye-relief, multi-reticle optical glass lens, clear and high resolution image, light-weight design.
3) Riflescope: Red/Green/Blue multi-color illumination, range estimating mil-dot reticle, parallex adjustable, quick tactical zero-locking.setting target turrets for windage and elevation adjustment at 1/4 MOA per click.
4) Laser Sight: 5mw tactical laser sight, pressure switch and rail mount, shock-resistant, water-resistant, maximum range of 10, 000 km, hard anodized matte black finish.
