FH25R Handheld Thermal Imaging Scope Monocular For Hunting

I'm Online Chat Now

FH25R Handheld Thermal Imaging Scope Monocular For Hunting

FH25R Handheld Thermal Imaging Scope Monocular For Hunting
FH25R Handheld Thermal Imaging Scope Monocular For Hunting FH25R Handheld Thermal Imaging Scope Monocular For Hunting FH25R Handheld Thermal Imaging Scope Monocular For Hunting FH25R Handheld Thermal Imaging Scope Monocular For Hunting FH25R Handheld Thermal Imaging Scope Monocular For Hunting

Large Image :  FH25R Handheld Thermal Imaging Scope Monocular For Hunting

Product Details:
Place of Origin: CHINA
Brand Name: XEYE
Certification: CE ROHS
Model Number: FH25R
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: Single package size: 30X20X15 cm Single gross weight: 1.500 kg
Delivery Time: 2-15days
Payment Terms: T/T
Supply Ability: 1000pcs/Month

FH25R Handheld Thermal Imaging Scope Monocular For Hunting

Description
Product Name: FH25R Handheld Thermal Imaging Scope Monocular Size: 70x52x130mm
Weight: 320g, Magnification: 24X
Effective Visual Distance: 1298m Operating Voltage: 3.7V
Resolution: 640x512 Pixels Frame Rate: 50Hz
Field Of View: 17.5°x14° Lens Size: 25 Mm
High Light:

Handheld Thermal Imaging Scope

,

FH25R thermal imaging monocular

,

FH25R thermal imaging scopes for hunting

FH25R Handheld Thermal Imaging Scope Monocular With Rangefinder for Hunting





FH25R Handheld Thermal Imaging Scope Monocular With Rangefinder for Hunting can be used in hunting and safety



Feature



The Finder series products are light and easy to carry, especially suitable for one-handed operation that can be put in a pocket
anytime and anywhere. The compact design and built-in laser rangerfinder makes the Finder the best choice for outdoor
investigation.

High Image Quality

The advanced image processing ability of the InfiRay detector, which has high performance electronics and optimized infrared optics, creates excellent image clarity and provides better detection and classification, both in day and night.

12 µm Thermal Imaging Sensor

High performance 12 μm pixel pitch detectors are embedded. Powerful objective lens in combination with a 12 µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,7 m (5.58 ft) tall object can be detected at a 1300 m (1420 yds) distance in complete darkness.Long Detection Range 1298 m

The powerful objective lens combined with a 12 μm professional grade thermal imaging sensor provides exceptional detection capabilities.High Image Frequency 50 Hz

The 50 Hz refresh rate guarantees that you will capture every moment that you are interested in
.HD Micro Display

1280×960 high-resolution internal display offers sharp image and vivid colors.

Integrated Laser Rangefinder (LRF) 600m

The Finder series has a built-in laser ranging module, which helps to quickly and accurately capture and display the target distance. The ranging accuracy is ± 1 m and the maximum ranging distance is 600 m. Accurate distance readings help to quickly assess the size of territory, distance and relief. Integrated, precision laser rangefinder provides accurate rangefinding, it provides both single ranging and continuous ranging modes. Continuous ranging can be quickly activated to adapt to the constantly changing distance of the observed object.

Pocket Machine

Low power elements used in Eye Series provide sufficient operation time. Up to 15 hours operational battery life guarantees you
don't have to worry about the power supply.

Infrared Sensor Switch

By sensing the reflection, the infrared sensor switch control the display on and off automatically which saves power and extends the device's operation time. It also has the advantage of high sensitivity, strong anti-interference ability and stable working performance.

Built-in Video Recorder and WiFi Connection

With built-in storage space , Finder series support to save the interesting moments in the form of photos or video for sharing with colleagues, friends and family. It can store many hours of recorded video and tens of photos.

App Supported

Built in Wi-Fi module provides connectivity of Finder with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware.

Built-in Accelerometer and Digital Compass

Built-in accelerometer and digital compass improves accuracy by precisely identifying cant and angles.



Specification



FH25R Handheld Thermal Imaging Scope Monocular



Model FL25R FH25R
Pixel size 12um
Frame rate 50Hz
NETD <40mk
Objetive lens 25mm
FOV 10.5x7.9 degrees 17.5x14.0 degrees
Optical magnification 2.5~10.0 x 1.5~6.0 x
Digital zoom x1/x1.5/x2/x2. /x3 /x3.5 x4
Exit pupil diameter 20mm
Focusing range of eyepiece -4D~+5D
Resolution 1280x960 LCOS
Battery type Li-ion
Max. battery life (t=25℃) 6h
Laser rangefinder range 600m
Amount of built-in memory 16Gb
APP compatibility Support
Dimension 70x52x130mm
Weight(without replaceable battery) 320g
Detection Range,
(Target size:1.7m×0.5m, P(n)=99%)
1298m

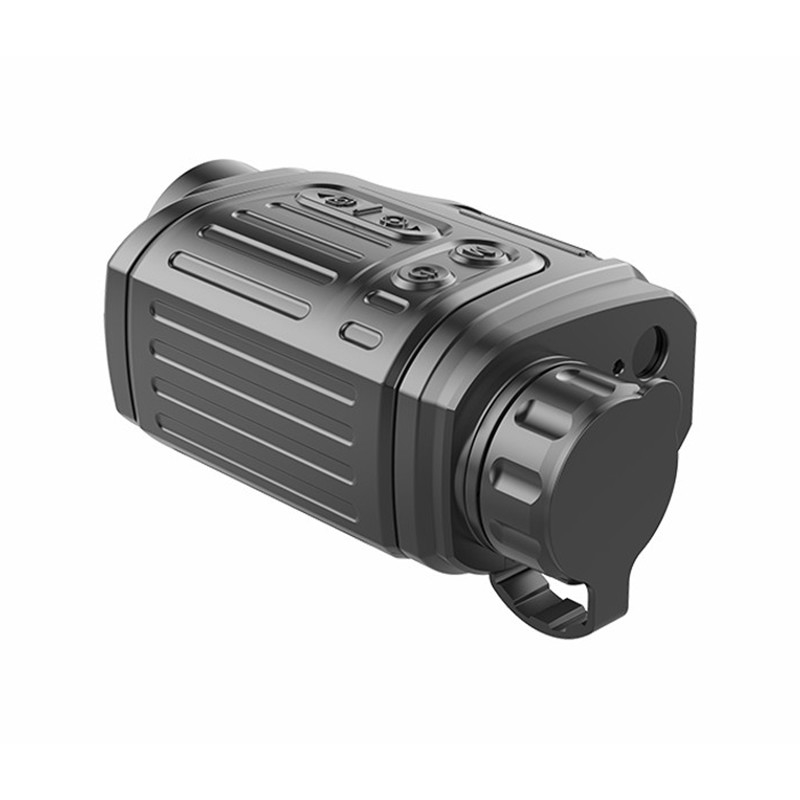

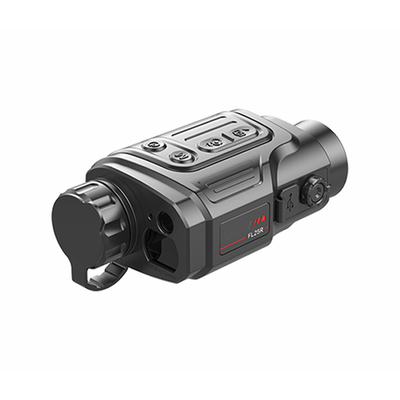

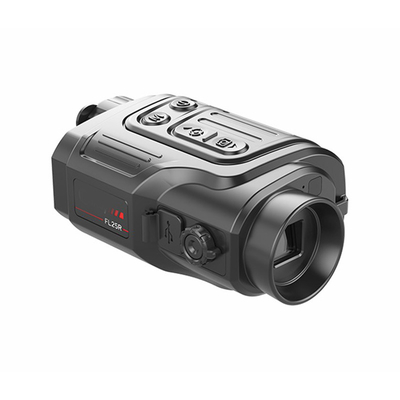

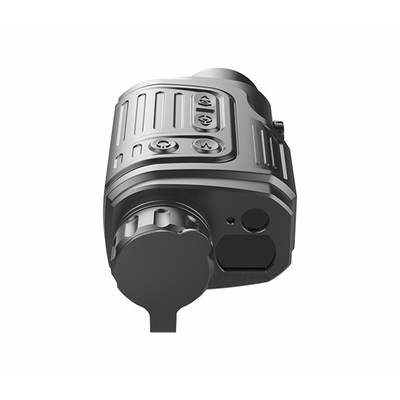

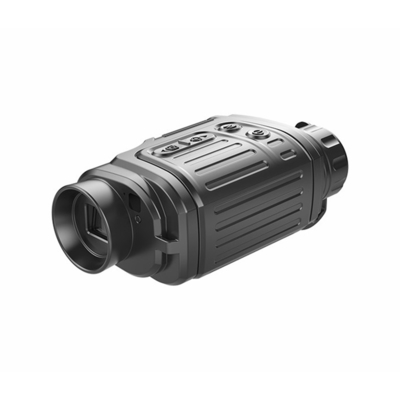

Product Picture



FH25R Handheld Thermal Imaging Scope Monocular For Hunting 0FH25R Handheld Thermal Imaging Scope Monocular For Hunting 1FH25R Handheld Thermal Imaging Scope Monocular For Hunting 2FH25R Handheld Thermal Imaging Scope Monocular For Hunting 3FH25R Handheld Thermal Imaging Scope Monocular For Hunting 4FH25R Handheld Thermal Imaging Scope Monocular For Hunting 5
