Product Details:
|
| Product Name: | GQ35L LRF Thermal Imaging Scope | Maximum Output Power: | >1MW,<5MW |
|---|---|---|---|
| Resolution: | 640*512@17μm | Magnification: | 2x |
| Digital Zoom:: | 1x~8x | Lens Size: | 35 Mm |
| Display Resolution: | :1960X1200 CMOS | IP Code Degree Of Protection: | IP67,1-meter Drop Test |
| Dimensions: | 167.8mm*87mm*73.3mm | Frame: | 30X20X20 Cm |
| High Light: | GQ35L LRF Thermal Imaging Scope,GQ35L LRF day and night hunting scope,2x day and night hunting scope |
||
GQ35L LRF Thermal Imaging Scope with Rangefinder Function for Day/ Night Hunting
GQ35L LRF Thermal Imaging Scope with Rangefinder Function for Day/ Night Hunting can give you sharp and clear image
Feature
640X512 Resolution ,12um
1960x1200 camera
600M laser range finder
Long battery time
Specification
| Model | GH25L | GH35L | GQ35L |
| Thermal Sensor | 384×288, 12 μm | 384×288, 12 μm | 640×512, 12 μm |
| NETD | < 35mK | < 35mK | < 35mK |
| Lens | 25 mm / F1.0 | 35mm / F1.0 | 35mm / F1.0 |
| Magnification | 2.39x | 3.35x | 2.0x |
| FOV | 10.53°x 7.9° | 7.5° × 5.7° | 10.97° × 8.82° |
| Visible Camera | 1/2” Progressive Scan CMOS, 1960*1200 | 1/2” Progressive Scan CMOS, 1960*1200 | 1/2” Progressive Scan CMOS, 1960*1200 |
| Detection Range | 1200 m | 1800 m | 1800 m |
| Laser Rangefinder | Wavelength: 905 nm, Measurement range: up to 600 m, Accuracy: ±1 m | Wavelength: 905 nm, Measurement range: up to 600 m, Accuracy: ±1 m | Wavelength: 905 nm, Measurement range: up to 600 m, Accuracy: ±1 m |
| Frame Rate | 50 Hz | 50 Hz | 50 Hz |
| Digital Zoom | 1×, 2×, 4×, 8× | 1×, 2×, 4×, 8× | 1×, 2×, 4×, 8× |
| Display | 0.39-inch, OLED, 1024 × 768 | 0.39-inch, OLED, 1024 × 768 | 0.39-inch, OLED, 1024 × 768 |
| Battery Type | One 18650 battery | One 18650 battery | One 18650 battery |
| Operating Time | Up to 6 h | Up to 6 h | Up to 4.5 h |
| Weight | 480g | 480g | 480g |
| Ingress Protection | IP67 | IP67 | IP67 |
| Operating Temp. | -30°C ~ +55°C | -30°C ~ +55°C | -30°C ~ +55°C |

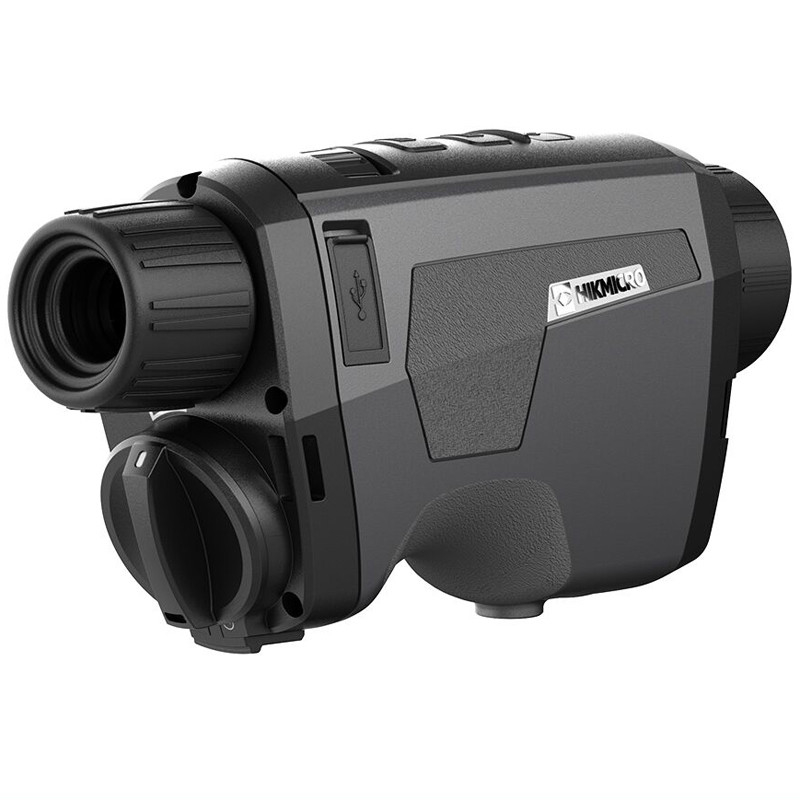

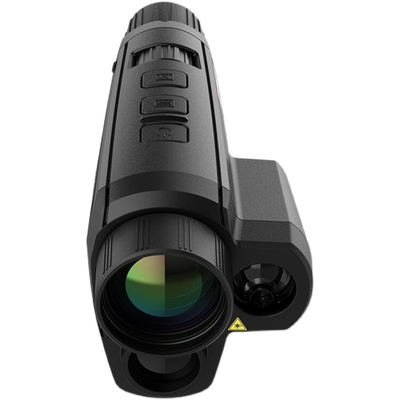

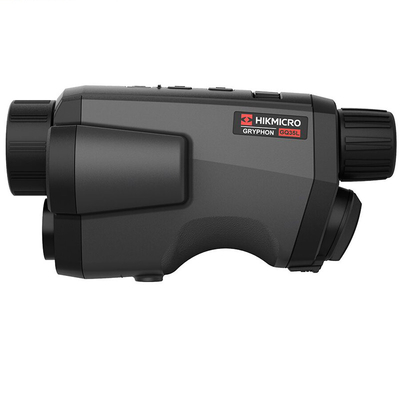

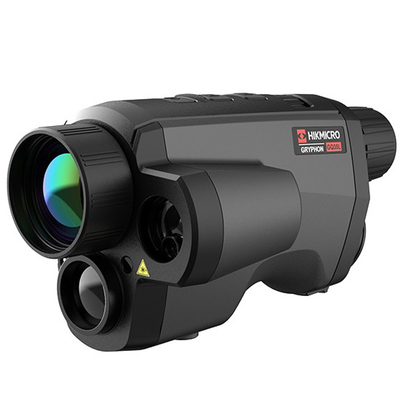

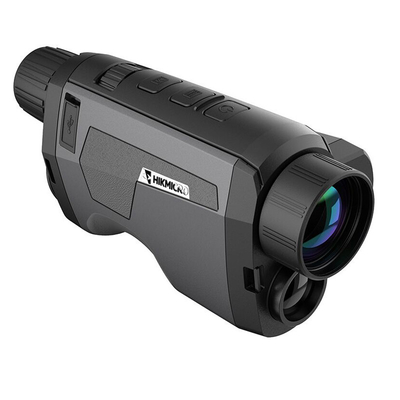

Product Picture
