25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288

I'm Online Chat Now

25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288

25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288
25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288

Large Image :  25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288

Product Details:
Place of Origin: CHINA
Brand Name: C-H
Certification: CE ROHS
Model Number: HT-4A
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: Single package size: 25X15X10 cm Single gross weight: 3.000 kg
Delivery Time: 2-15days
Payment Terms: T/T
Supply Ability: 1000pcs/Month

25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288

Description
Size: 186x68mm Weight: 440g
Magnification:: 2/4 Effective Visual Distance: 1.76km/2.47km
Operating Voltage: 3.7V Night Vision To Hunt Lens Size: 25mm/35mm
LCD Resolution: 720*540 Wavelength Coverage: 8μm-14μm
Color Palette: Rainbow/Hot Metal/white Heat/black Heat Working Time: ≥6 Hours
High Light:

25mm 35mm Thermal Imaging Scope

,

25mm 35mm monocular night vision scope

,

thermal night vision monocular 384X288

HT-A4 Handheld 384X288 50HZ Thermal Imaging Scope Monocular For Night Hunting





HT-A4 Handheld 384X288 50HZ Thermal Imaging Scope Monocular For Night Hunting  can be used in completely darkness



Specification



Model HT-A4 Thermal image scope monocular
Probe type Uncooled focal plane
Resolution ratio 384x288
Focal length 19mm 25mm 35mm
Eyepiece Single eyepiece display (the dioptric
compensation is adjustable)
Field angle 19.5°x14.7°; 14.9°x11.2°; 10.7°x 8°
Digital zoom 2 X 4 X 8 X
Wavelength coverage 8μm-14μm
Frame rate of thermal images 25Hz/50Hz
Color palette Rainbow/red heat/black heat
Focusing mode Adjustable
Image storage BMP
Battery Built-in rechargeable batteries
USB Micro USB
Working time 6 hours
Power off time 5 minutes (Automatic power-off time)
Product weight 400g
Product size(length × height) 186x68 mm(with eye patch)
Work temperature 0℃- 45℃
Storage temperature -20℃- 60℃

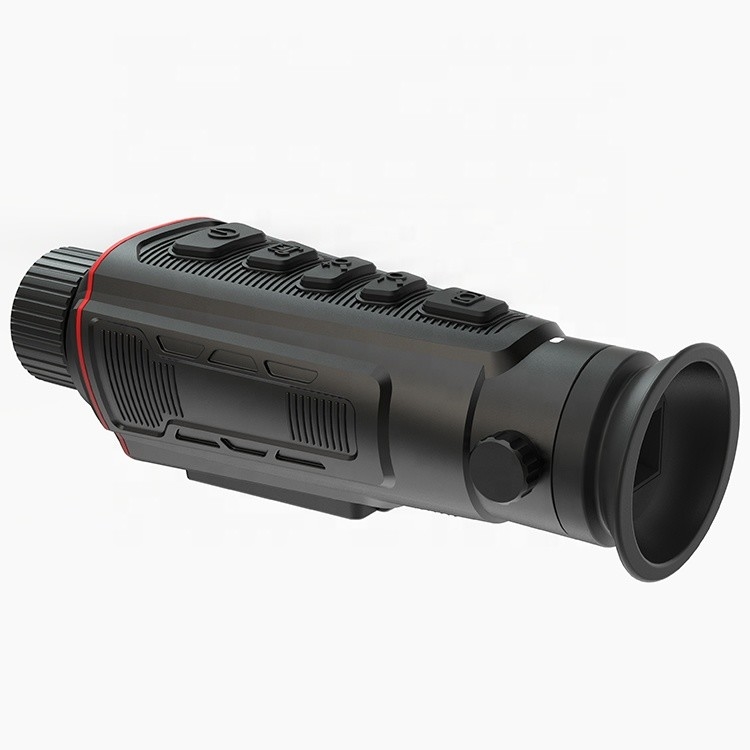

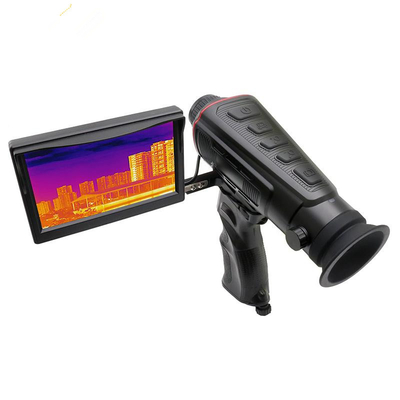

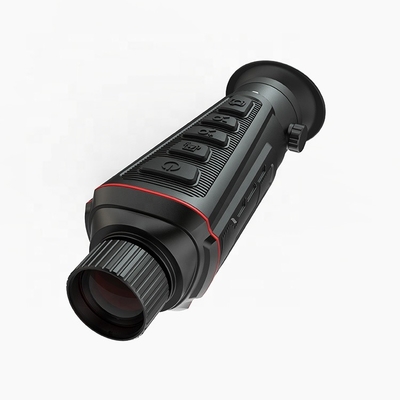

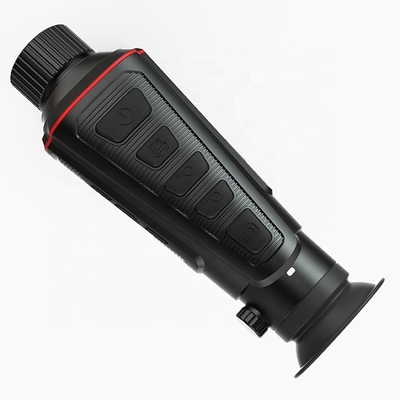

Product Picture

25mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 025mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 125mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 225mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 325mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 425mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 525mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 625mm 35mm Thermal Imaging Scope Night Vision Monocular 384X288 7
