Product Details:
|
| Product Name: | 2-5x24IR Long Range Hunting Scopes | Objective Lens Diameter: | 24mm |
|---|---|---|---|
| Ocular Lens Diameter: | 36mm | Lens Coating: | FMC |
| Body Tube Diameter: | 30mm Monotube | Construction Material: | A6063-T6 |
| Scope Length: | 249mm | Eye Relief: | 101.2mm |
| Click Value:: | 0.2MIL | Weight (g): | 395g |
| High Light: | 2-5X24 Long Range Hunting Scopes,2-5X24 red green illuminated Scopes,Crossbow red green illuminated Scopes |
||
Compact2-5X24 Long Range Hunting Scopes with red green illumination For Crossbow
Compact2-5X24 Long Range Hunting Scopes with red green illumination For Crossbow is designed for all kind of crossbows
Features
We could produce many kinds of reticules from various kinds of reticules of Chinese-style telescope to German-style,
American-style, Russian-style, Japanese-style and Czech-style telescopes; including regular flat surface chrome oxide reticule,
night lighting etching reticule, transparency field reticule of bright background dark figure and night field reticule of high density
dark background bright figure.
Specification
| Product Name | 2-5X24 Long Range Hunting Scopes |
| Product No | SFS011 |
| Magnification low power | 2 |
| Magnification high | 5 |
| Clear aperture (mm) | 24 |
| Eyepiece Field of view | 23 |
| Diopter range +/- | 2 |
| Eye relief (mm) | 96 |
| Standard Klick value for E/W (MOA) | 0.25 |
| Total travel elevation (@ 100 yds) | ≥ 60MOA |
| Total travel windage (@ 100 yds) | ≥ 60MOA |
| Parallax Compensation | 30yds |
| Fast focus eyepiece | yes |
| Sealing gas used | Nitrogen |
| Clear aperture min magnification (mm) | 21.4 |
| Clear aperture max magnification (mm) | 24 |
| Eff. exit pupil diameter @ min. magnification ± 3 % | 10.68 |
| Eff. exit pupil diameter @ max. magnification ± 3 % | 4.80 |
| Maximum resolution in Arc. Second (min. Magnification) | 8.00 |
| Maximum resolution in Arc. Second (max. Magnification) | 7.00 |
| Range of Function temperature (Unit can still be operated) | -25°C/+55°C |
| Storage temperature | -40C to +85C |
| Range of Dioptric compensation +/- dpt | 2.00 |
| Permissible backlash Dioptric Compensation | <0.25dpt |
| objective field of view @ min magnification (ft @100yds) | 63.67 |
| objective field of view @ max magnification (ft@100yds) | 25.47 |
| Change of impact point after change of magnification (MOA) | 1 |
| Straightening of the Reticle | ± 2 ° |
| Coating | FMC |
| Weight (g) | 395g |
| Length(mm) | 245mm |
Pack List
1X brand new 2-5X24 Long Range Hunting Scopes
1x Plastic Wrench
1XCleaning cloth
1xCR2032 Battery
1X Operating manual

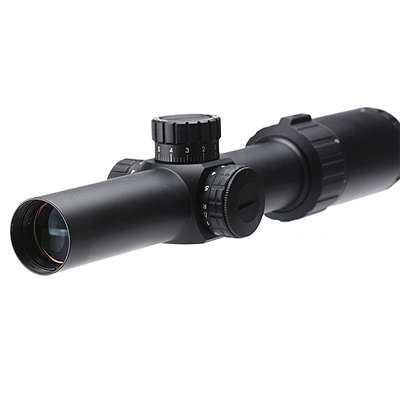

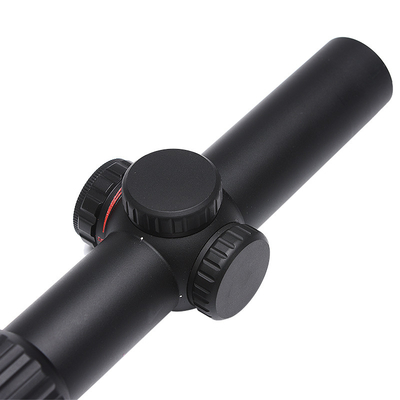

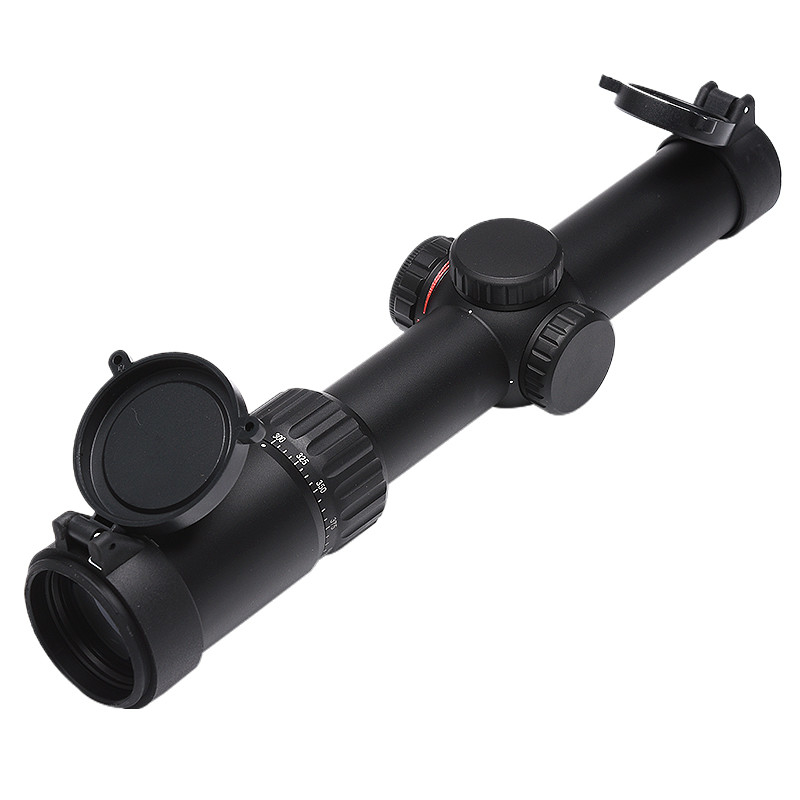

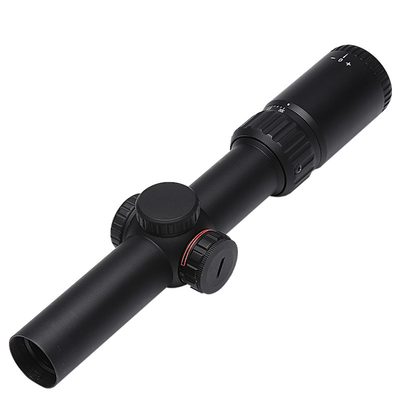

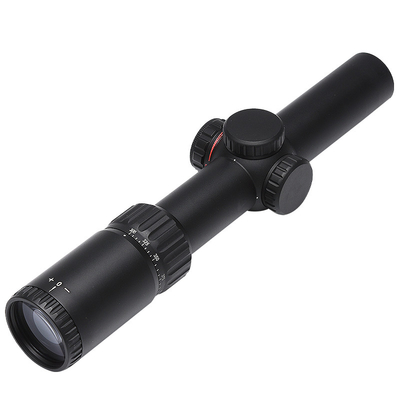

Product PIcture
