4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount

I'm Online Chat Now

4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount

4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount
4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount 4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount 4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount 4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount 4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount

Large Image :  4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount

Product Details:
Place of Origin: Chengdu
Brand Name: C-H
Certification: CE ROHS
Model Number: RD001
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: 1pc/box,50boxes/ctn Carton Size:41.5x21.5x33cm Carton Weight:G.W:11.2KG N.W:8.0KG
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 10000PCS/Month

4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount

Description
Product Name: Red Green Dot Scope Dot Color: Red, Green
Reticle Type: 4 Patternd Field Of View(@100yds): 15.8m@100m
Objective Aperture:: 33mm Material:: Aluminium Alloy
Illumination Level: Stepless Color: Blank And Sand
High Light:

Ratchet 1x23x34 Red Green Dot Scope

,

Red Green Dot Scope with QD Picatinny Mount

,

4 Reticle Sight trace red dot

Ratchet 1x23x34 Red Green Dot Scope 4 Reticle Sight with QD Picatinny Mount



Ratchet 1x23x34 Red Green Dot Scope 4 Reticle Sight with QD Picatinny Mount can be used with hunting rifles,AR and other weapons with 22mm rail.





Fearture



Light and Compact, Quick Release Mount, Four Kinds of Reticles, Design for Real Fire Caliber , Tactical Style



1 TOOLS INCLUDED: Adjustable windage and elevation (tools included). Unlimited eye-relief and corrected parallax. Tubeless design with 33mm reflex lens and a wide field of view (15.8m@100m) for close to mid-range targets.


2 PICATINNY RAIL MOUNT: Equipped with a built-in picatinny scope mount base that fits 20mm rails and provides easy sight remounting.


3 ULTIMATE DURABILITY: Aerospace-grade aluminum alloy construction for lasting dependability and easy maintenance and cleaning (cleaning cloth included).


4 WATER/FOG/SHOCK PROOF: Water-proof, fog-proof and shock-proof properties protect internal components and enhance performance in all weather conditions. The light-weight design upgrades your open/concealed carry experience.



Spec



· Model: Red Green Dot Scope

  Model Number:RD004/RD004QD

· Magnification: 1.0x

· Tubeless Sight Window Lens Size: 23x34mm

· Overall length: 82mm (3.2 inch)

· Width (without mount level): 30mm (1.2 inch)

· Height: 48mm (1.9 inch)

· Front switch for red color reticle and rear switch for green color reticle

· Weight (net): 140g (4.9 ounce)

· Eye Relief: Free, excellent for moving target and raid shot

· Parallax: 1 MOA at 80 yards

· Field of View (M @ 100M): 15.7

· Optics Coating: Multi Coated

· Reticle: Four kinds of reticles; Reticle exchange with audible click

· Feature 1 M.O.A (50 Yards) windage and elevation

· Elevation Range: ± 30MOA

· Windage Range: ± 30MOA

· Shock proof, Rain Proof and Fog Proof

· 5 levels brightness for green and red color. Push 3 seconds to shut down the sight.

· High quality aluminum alloy in durable black matte finish

· With reticle lock feature

· Integrated 21mm weaver quick release mount



· To exchange battery:



1 Use coin to loosen the cap

2 Take out the used battery

3  Exchange with 3 new pcs of LR754 button batteries

4  Refasten the cap again

·

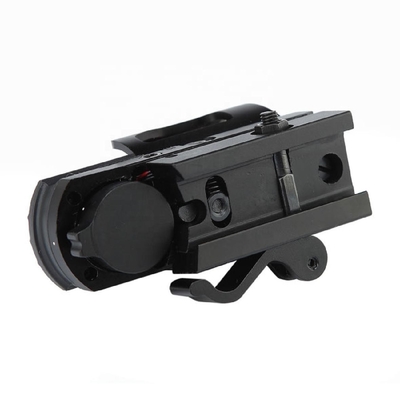

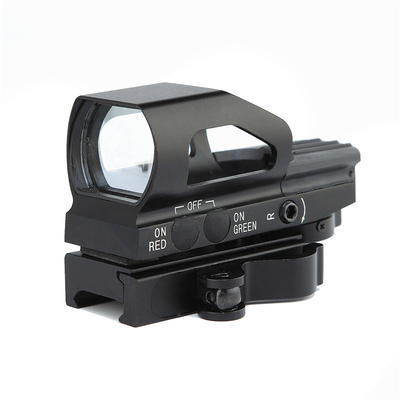

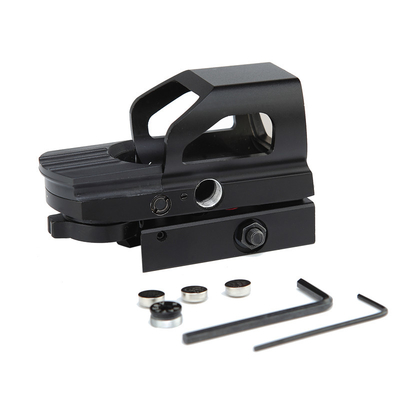

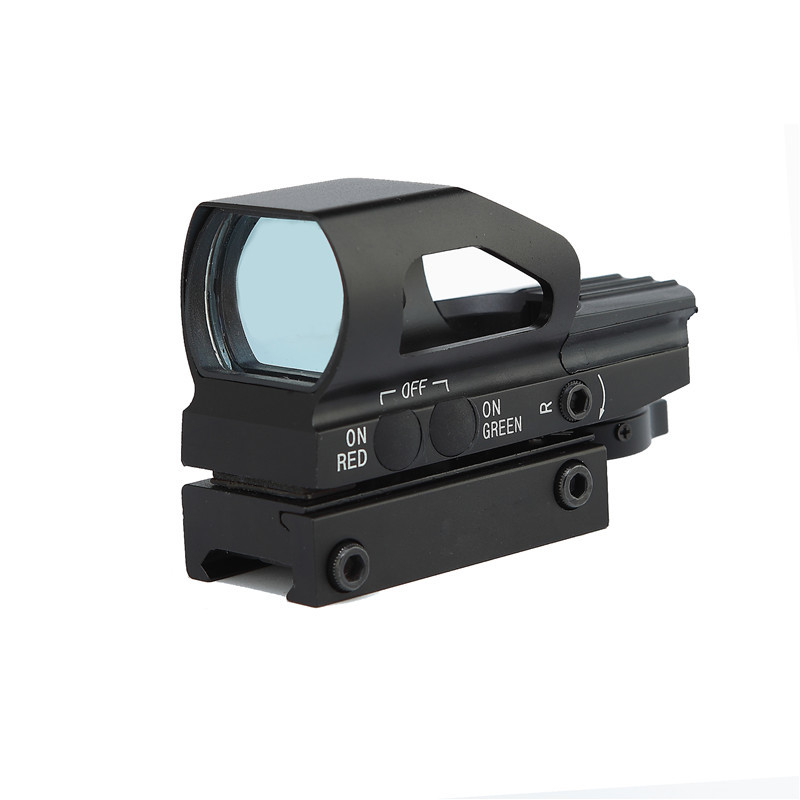

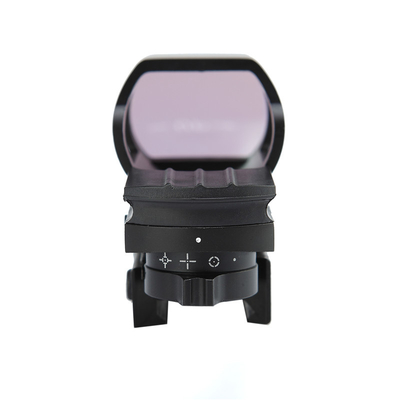

Product Picture





4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount 0

4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount 1

RD004QD

4 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount 24 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount 34 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount 44 Reticle Sight Ratchet 1x23x34 Red Green Dot Scope With QD Picatinny Mount 5
